FT-1600 Tipping Trailer 3,990.00 (excl. tax)

FT-1600 Tipping Trailer

3,990.00 (excl. tax)

Optional electro-hydraulic or manual hand pump tipping includes an integrated hydraulic system that allows tipping without the use of external hydraulics.
News. Street legal versions (EU CoC) now available!

The multifunctional hydraulic tipping trailer has platform-type body and is designed for compact tractors, compact loaders, ATV’s and UTV’s. For compact machinery, the trailer’s weight distribution is enhanced, and the vertical load is optimized, resulting in increased safety and maneuverability. Single axle design compared to bogie axle is great for grass areas and delicate on turf. Now with galvanized frame, side panels and corner posts!

View technical data
  • Customize Your Equipment

  • *

  • *

  • *

  • *

Want a discount? Become a member!

Worldwide shipping available

  • EU or USA, Canada – we got you covered

  • If you have any questions on shipping, call us at +372 5347 4977

  • Today, we are operating in more than 20 countries

Guaranteed Safe Checkout

Trailer FT-1600 from Foresteel

Tractors, loaders, ATVs, and UTVs can all benefit from a single axle hydraulic tipping trailer with a large loading capacity.

  • Strong and well-designed trailers with high-strength steels and long service life.
  • Developed & based on years of feedback from real users who are not looking for the cheapest product, but the one that can actually serve them in the long run.
  • High quality finish, that in addition to performing well also looks great and fits well with your machinery and ambience.

FT-1600 Benefits

Design and finish of the highest degree

Strong and durable construction

Smooth and flexible bogie axle

Components of excellent grade

Powerful hydraulic tipping

Optimal weight distribution and low self weight thanks to special steels

Compact design makes it easy to manouver

Wide tires with greater surface area

Multifunctional platform body with removable corner posts

All sides openable and separately removeable

Adjustable drawbar height, connectable with any machine

Wide range of options and accessories

Autonomous hydraulics available with manual handpump or electro-hydraulics

Designed and manufactured in Europe.

Technical data

Trailer size:

FT-1600

Loading capacity

1600 kg

NET weight

380 kg

Inside dimensions

2000 mm x 1250 mm x 300 mm (without extensions)

Volume

0.75 m3 (without extensions)

Measurments

L 3300 mm X W 1360 mm

Platform thickness

3 mm; high strength steel

Tipping

Rear, Hydraulic, 50 °

Wheel size

26” x 12” x 12”

Extras

40 mm Towing eyelet (replaces standard coupling option), NET extensions (Leaf extensions) 700 mm, Extra level side pannels 300 mm, Electro hydraulic tipping kit. Includes batter, charger, integrated battery indicator, charging plug, wired remote

Delivery information

Delivered to door with tail lift truck. Packaged on pallet, with drawbar and wheels unassembled for transport.
No unloading equipment needed by customer for receipt. (Unless requested for delivery fully assembled)

FT-1600 COC/COCL Version

EU Type Approved/Street legal version with CoC papers
Dimensions: 3790 mm x 1360 mm x 1062 mm
Total mass: 2000 kg
Drawbar nose load: 150 kg COC / 300 kg COCL (Leaf Compatible)
Coupling: D50 mm ball coupling (DIN-eyelet optional)
Coupling height: 430mm
Max speed: 40 km/h (Wide landscaping turf tires)
Brake system: Auto-reverse overrun brakes with handbrake
EU type approved to class R2a (40 km/h)

Play Video

Standard equipment

D50 mm ball coupling
Details
D50 mm ball coupling
Universal hitch connection - tow with any hitch-ball equipped vehicle.
Adjustable height coupling
Details
Adjustable height coupling
Adjustable height coupling
Wide turf tires
Details
Wide turf tires
The turf tire we use is premier tire for turf applications and is also the OEM choice for many ZTR and high-end commercial mower manufacturers. For commercial or heavy residential use, the Kenda K500 will provide "everything you want and more" in a lawn and garden tire. With more rubber on the contacting surface than most competitor tires, the K500 allows enhanced puncture resistance and longer tread life.
Greasable tip bearings
Details
Greasable tip bearings
Increased trailer lifetime with smoother, quieter operation.
Platform body with corner posts
Details
Platform body with corner posts
Multifunctional body design for wide variety of usage scenarios. Corner posts lock all sides separately, making sure side panels don't fall open when rear door is opened like on many competitors trailers.
All side panels openable and removable
Details
All side panels openable and removable
Platform body enables many usage possibilities. For example you can remove front and rear panels to transport overlength materials; remove one side for easy loading & unloading or remove all panels and posts for full-platform.
Hydraulic tipping – hydraulic hose connection in standard
Details
Hydraulic tipping – hydraulic hose connection in standard
Foresteel trailers' powerful hydraulic tipping ensures easy and fast unloading of even the heaviest loads. No need for back-breaking manual work.
High quality finish in Foresteel orange or green
Details
High quality finish in Foresteel orange or green
All Foresteel trailers have high quality finish with powder coated platform and hot dip galvanized frame and sides for extra long lifetime and corrosion durability.
Adjustable support wheel
Details
Adjustable support wheel
Adjustable support wheel makes hooking the trailer, but also maneuvering the trailer in storage much more ergonomic and comfortable.
LED lights with rear triangle reflectors
Details
LED lights with rear triangle reflectors
Multifunctional rear light with direction indicator, position lamp, stop lamp (E9), with rear triangle reflectors.

Optional equipment

40 mm Towing eyelet
Free!
Details
40 mm Towing eyelet
Free!
40 mm towing eyelet/towing hook allows connecting the trailer with most tractors and compact loaders.
NET extensions 70 cm
800.00 (excl. tax)
Details
NET extensions 70 cm
800.00 (excl. tax)
Strong galvanized steel mesh extensions to increase trailer volume. Perfect for leaves, branches, firewood and other materials.
Extra level side panels 30 cm
800.00 (excl. tax)
Details
Extra level side panels 30 cm
800.00 (excl. tax)
Strong galvanized steel sheet extensions to increase trailer volume. Perfect for lightweight bulk goods.
Manual handpump tipping kit
375.00 (excl. tax)
Details
Manual handpump tipping kit
375.00 (excl. tax)
Integrated manual hydraulic pump for tipping - no external hydraulics needed
Electro hydraulic tipping kit
1,150.00 (excl. tax)
Details
Electro hydraulic tipping kit
1,150.00 (excl. tax)
Trailer integrated tipping system with wired remote - no external hydraulics needed. Includes battery, charger, integrated battery level indicator, charging plug, wired remote.
Forestry Posts
490.00 (excl. tax)
Details
Forestry Posts
490.00 (excl. tax)
Allows converting your Foresteel tipping trailer to forestry trailer with easy to use forestry posts set. Posts can be removed from holders for easy manual loading of logs.
Top linked rear hatch
400.00 (excl. tax)
Details
Top linked rear hatch
400.00 (excl. tax)
Top linked rear hatch for easier usage of bulk materials like soil, gravel etc. * Can not be used in combination with extensions.

Easy and simple!

FT-1600 can help you with your daily tasks and solve several problems.

Choosing a trailer seems like an easy task. Yet picking the one that can withstand the test of time while being used to its limits can be a sizable task. Not anymore!

We listened to users and developed trailers that surpass those expectations. See below what are the common problems when sourcing tipper trailers for tractors, loaders and other small machinery. And what we have done to surpass the expectations with ours.
Here’s what we have learned from our customers:
Play Video

Problem

  • It is hard to to find the best fit for your needs while without overpaying for too little.
  • Getting a product that actually looks like pictured.
  • Weak hydraulics and a low tip angle are often discovered only after the equipment is purchased. Inadequate hydraulics cannot tip a full load, and insufficient tip angle does not allow the load to be unloaded without manual labor. But that's the point of a tipper trailer, isn't it?
  • Deflected frame, cracked welds, deflected side panels, deformed axle, broken panel locks, failing components, poor-quality rusty finish are just some of the problems that customers who purchased cheaper alternative products first have shared with us.
  • Lack of customer support and the availability of spare parts is non-existent or problematic leaving you alone with problems after the purchase.

The solution offered by Foresteel

A product developed in response to years of user feedback, with the goal of producing a trailer that could withstand a long period of use and therefore be more cost effective.
  • Strong and well-designed trailers.
  • A product developed in response to years of user feedback, with the goal of producing a trailer that could withstand a long period of use and therefore be more cost effective.
  • For compact machinery, the trailer’s weight distribution is enhanced, and the vertical load is optimized, resulting in increased safety and maneuverability.
  • Tested and proven design with high-strength steels and exceptional durability.
  • Multifunctional platform body design for unlimited usage possibilities.
  • High-quality finish that, in addition to good performance, also looks great and fits well with your machines and atmosphere.
  • Direct product support whenever needed.
Strong and well-designed trailers with high-strength steels and high durability.

Benefit

  • Beautiful trailers for stunning locations.
  • Reliability and strong construction ensure a long service life.
  • The powerful hydraulic tipping manages any load.
  • A platform type box with unlimited use scenarios.
  • A wide selection of accessories increases the possibilities of use now and in the future.
  • Avoid buying twice and get the Foresteel quality trailer first.
  • Get your product - directly from the manufacturer, with direct delivery, immediate availability of spare parts and personal support if necessary.
  • Foresteel has already been chosen and tested by hundreds of users in more than 21 countries.
Source your product – directly from the manufacturer, with direct delivery, immediate availability of spare parts and personal support if necessary.

Customer stories

A few examples of how our products help our customers with their needs.

Peeter K., Estonia

“Strong yet light. GREAT build quality and fits perfectly for my Honda. I was considering between the single axle and bogie axle versions but went with the single axle FT-1600 as I have most turf areas and it is super delicate on greens with it’s wide turf tires. Electro hydraulic tips full load in seconds!”

"FT-1600 ATV set"

A small selection of customers…

  • Private household
  • Farm
  • Golf centers
  • Manors
  • Sports grounds and facilities
  • Municipalities
  • Camping centers
  • Universities
  • Landscaping contractors
  • Hotels and spa centers
  • Church-cemetery managers etc
…to whom we have already delivered this unit to!

Product showcase

Cool images and videos we have to show you more about our products.

Product showcase

Cool images and videos we have to show you more about our products.

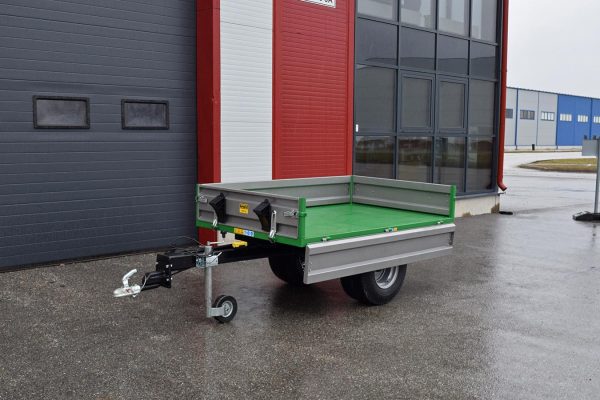

Foresteel-FT-1600-tipping-trailer-5

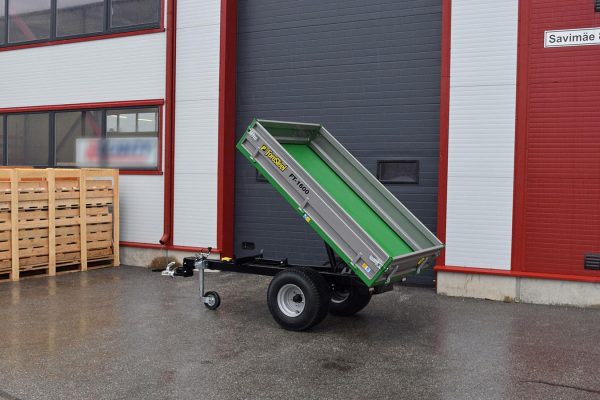

Foresteel-FT-1600-tipping-trailer-3

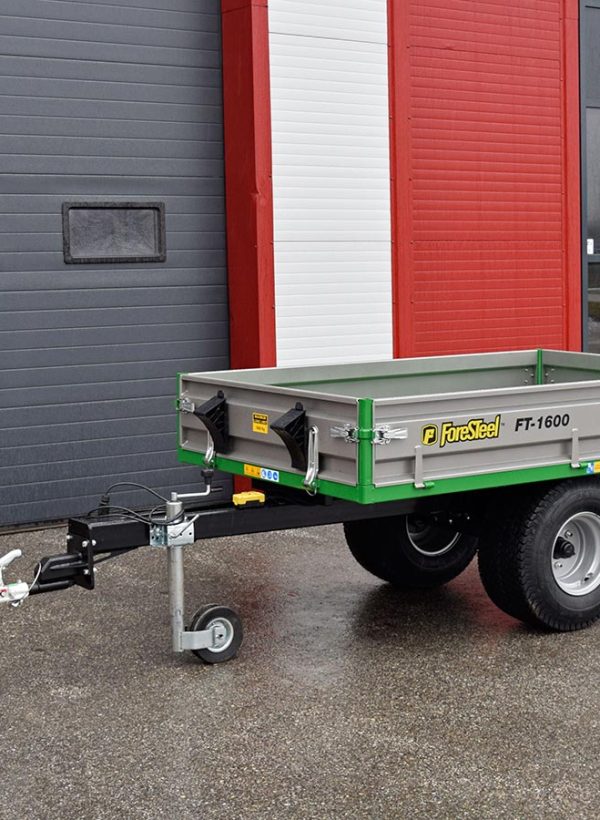

Foresteel-FT-1600-tipping-trailer-1
Play Video

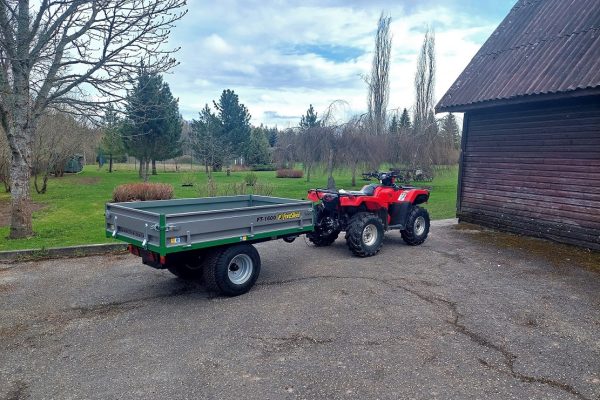

Foresteel-FT-1600-tipper-with-ATV

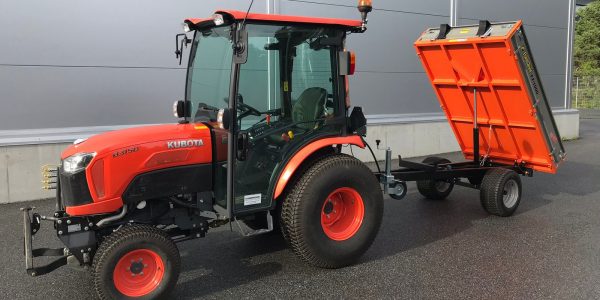

004-Foresteel-FT-1000-with-Kubota-B3150-2
